Gear pumps

Gear hydraulic pump — one of the types of three-dimensional hydraulic machines of the rotor type, consisting of a pair of gears placed in a sealed housing having a suction and discharge cavity, and the working chambers are formed by profiles of tooth depressions, boring surfaces and side covers.

Gear pumps are easy to manufacture and reliable in operation; are applied in hydraulic systems where rather high pressure (to 15 - 20 MPa) at small giving is required, efficiency 87 - 90%. They can also be used to dispense fluids, as well as to supply lubrication or power to auxiliary mechanisms.

As well as other types of volume rotary hydraulic machines in principle can work both in the mode of the hydraulic pump, and in the mode of the hydraulic motor. In that case, if torque is applied to the shaft of the hydraulic machine, the machine operates in the hydraulic pump mode. If the working fluid is supplied to the inlet of the hydraulic machine under pressure, the torque is removed from the shaft and the machine operates in the hydraulic motor mode.

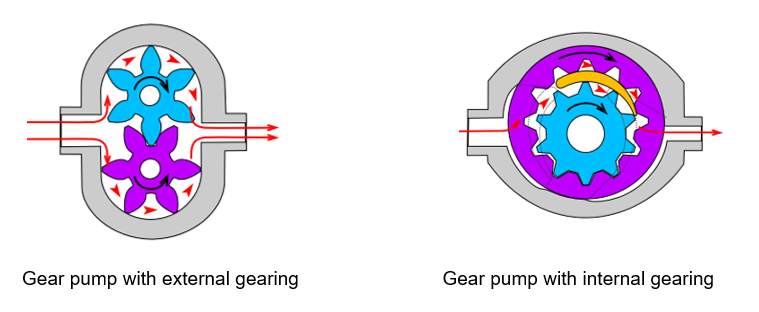

By the nature of gearing, gear hydraulic pumps can be divided into 2 groups:

  • Gear pump with internal gearing;
  • Gear pump with external gearing.

Gear pumps with internal gearing are used mostly in complex hydraulic systems where high pressure operation is required for a long time.

External gear pumps are ideal for a wide range of applications, as they are simpler and cheaper to manufacture, namely:

  • presses and metalworking machines;
  • manipulators and lifts;
  • hydraulic oil stations and other industrial hydraulic systems;
  • oil lubrication and filtration systems;
  • as an auxiliary working body in systems with high pressure pumps;
  • small vehicles, such as car lifts, lawn mowers and electric forklifts, and others;
  • medium and large vehicles, such as tractors, backhoe loaders, dump trucks and telescopic handlers, etc.

Gear pumps can be combined in many variants, and in various combinations they are able to meet any needs.

Given the many examples of applications of gear pumps with external gearing, we keep in stock a significant number of options and versions of such pumps.

Availability and price can be clarified with our specialists.

Gear pumps with external gearing are divided by size into the following groups:

Hydraulic pumps of 0 group

Manufacturer

Operating volume, cm3

Max. operating pressure, Bar

Series

Catalog

Danfoss (Turolla)

0,25-1,3

180

TFP0NN

Catalog link pdf

Hydraulic pumps of 1 group

Manufacturer

Operating volume, cm3

Max. operating pressure, Bar

Series

Catalog

Danfoss (Turolla)

1,2-12

250

SNP1NN

Catalog link pdf

Duplomatic

1,6-11,5

230

1P

Catalog link pdf

Duplomatic

1,3-9,1

250

GP1

Catalog link pdf

Kracht

1-8

250

KP 0

Catalog link pdf

Hydraulic pumps of 2 group

Manufacturer

Operating volume, cm3

Max. operating pressure, Bar

Series

Catalog

Danfoss (Turolla)

4-25

250

SNP2NN

Catalog link pdf

Danfoss (Turolla)

6-28

250

SHP2NN

Low noise

Catalog link pdf

Duplomatic

7-27,9

230

GP2

Catalog link pdf

Kracht

1,5-25

250

KP 1

Catalog link pdf

Kracht

3-20

200

KP 1

series 2

Catalog link pdf

Hydraulic pumps of 3 group

Manufacturer

Operating volume, cm3

Max. operating pressure, Bar

Series

Catalog

Danfoss (Turolla)

22-90

250

SNP3NN

Catalog link pdf

Duplomatic

20,7-87,6

260

GP3

Catalog link pdf

Kracht

20-62

250

KP 2

Catalog link pdf

Kracht

20-62

120

KP 2

Low noise

Catalog link pdf

Hydraulic pumps of 4 group

Manufacturer

Operating volume, cm3

Max. operating pressure, Bar

Series

Catalog

Danfoss (Turolla)

60-200

220

TAP4NN

Catalog link pdf

Kracht

63-125

250

KP 3

Catalog link pdf

Kracht

63-125

120

KP 3

Low noise

Catalog link pdf

Hydraulic pumps of 5 group

Manufacturer

Operating volume, cm3

Max. operating pressure, Bar

Series

Catalog

Kracht

160-300

100

KP 5

Catalog link pdf

Tandem pumps

Manufacturer

Operating volume, cm3

Max. operating pressure, Bar

Series

Catalog

Danfoss (Turolla)

4-25

250

SKP2 compact

Catalog link pdf

Danfoss (Turolla)

1,2-200

250

P

Catalog link pdf

Duplomatic

1,6-87,6

260

GP

Catalog link pdf

Kracht

3-125

250

KP

Catalog link pdf

Gear pumps with internal gearing

1. Hydraulic pumps with internal engagement type IGP

Manufacturer

Operating volume, cm3

Max. operating pressure, Bar

Series

Catalog

Duplomatic

3,6-251

330

IGP

Catalog link pdf

In addition to the supply of hydraulic pumps of these manufacturers, our company can offer our customers the supply of originals or selection of analogues of the following hydraulic pumps:

  • Hydraulic pumps Rexroth / Pumps Rexroth / Gear pumps Rexroth
  • Hydraulic pumps Bosch / Pumps Bosch / Gear pumps Bosch
  • Hydraulic pumps Bosch Rexroth / Pumps Bosch Rexroth / Gear pumps Bosch Rexroth
  • Hydraulic pumps Parker / Pumps Parker / Gear pumps Parker
  • Hydraulic pumps Ponar / Pumps Ponar / Gear pumps Ponar
  • Hydraulic pumps Vickers / Pumps Vickers Gear pumps Vickers
  • Hydraulic pumps Eaton / Pumps Eaton / Gear pumps Eaton
  • Hydraulic pumps Eaton Vickers / Pumps Eaton Vickers / Gear pumps Eaton Vickers
  • Hydraulic pumps Atos / Pumps Atos / Gear pumps Atos
  • Hydraulic pumps Vivoil/ Pumps Vivoil / Gear pumps Vivoil
  • Hydraulic pumps Casappa/ Pumps Casappa / Gear pumps Casappa
  • Hydraulic pumps Dana / Pumps Dana / Gear pumps Dana
  • Hydraulic pumps Yuken / Pumps Yuken / Gear pumps Yuken
  • Hydraulic pumps Bucher / Pumps Bucher / Gear pumps Bucher
  • Hydraulic pumps Denison / Pumps Denison / Gear pumps Denison
  • Hydraulic pumps Hydac / Pumps Hydac / Gear pumps Hydac
  • Hydraulic pumps Orsta / Pumps Orsta / Gear pumps Orsta
  • Hydraulic pumps Omfb / Pumps Omfb / Gear pumps Omfb
  • Hydraulic pumps JihoStroj/ Pumps JihoStroj / Gear pumps JihoStroj
  • Hydraulic pumps Caproni/ Pumps Caproni / Gear pumps Caproni
