Vacuum generators
COAX® is an advanced solution for creating vacuum with compressed air.

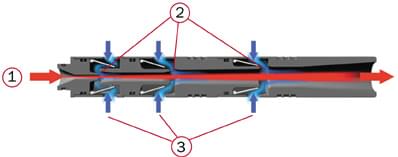

When compressed air (1) passes through the nozzles (2), air is pulledthrough with the stream of compressed air. Suction will be generated
at the opening of each stage (3), resulting in vacuum. TECHNICAL DATA
- Maximum vacuum level 95 –kPa
- Vacuum flow 345 m³/h
- Feed pressure 0.17–0.6 MPa
- Low energy consumption
- Simple to install
- Low weight and small dimensions
- No electrical and mechanical parts
- Minimal maintenance
- Generate no heat
