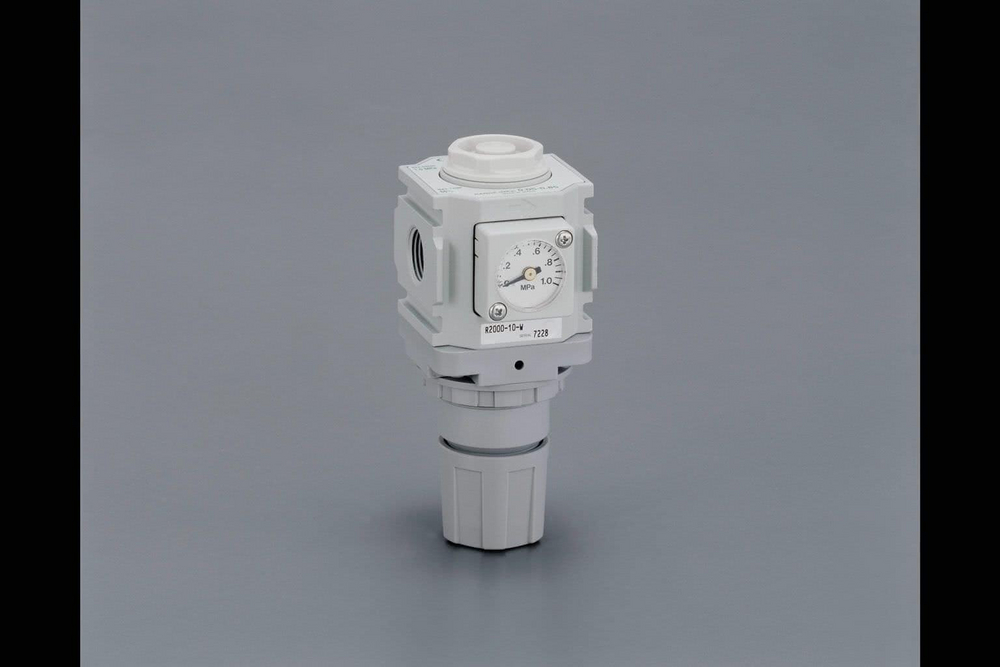

CKD Filter regulator standard white series W1000/W3000/W4000/W8000-W

  • Port size 1/8”, 1/4”, 3/8”, 1/2", 3/4", 1” (Rc, NPT or G threads)
  • Flow up to 10’000 Nl/min
  • Working pressure 0.5 to 8.5 bar (option 0.5 to 3.5 bar)
  • Element 5 µm and 0.3µm
  • Manual or automatic drain
  • Functional features

Compact module CKD

  • Light weight
  • Long-life element
  • Embedded pressure gauge for saving space
  • Mechanism to prevent oil dripping during primary pressure drop
  • Corrosion resistant, safe bowl guard
  • Gauge plug

Operative features CKD

  • Adjust pressure without tools
  • Easily installed on panels
  • Oil drip adjustment knob with look
  • Double plastic structure
  • One-touch integrated attachment
  • O-ring drop prevention
  • One-touch integrated filter element
