Plate pumps

The vane hydraulic pump is a pump (hydraulic machine), which consists of blades mounted on a rotor that rotates inside the cavity.

The principle of operation of the vane hydraulic pump

The principle of operation of the vane hydraulic pump is as follows:

Under the action of torque on the pump shaft, the rotor of the hydraulic machine comes into rotation. Under the action of centrifugal force (or under the action of the elastic force of the springs under the vanes), the vanes are pressed against the stator housing, resulting in the formation of two cavities that are hermetically separated from each other. The volume of one of the cavities gradually increases (in this cavity is suction), and at the same time the volume of the other cavity gradually decreases (from this cavity is the injection of working fluid).

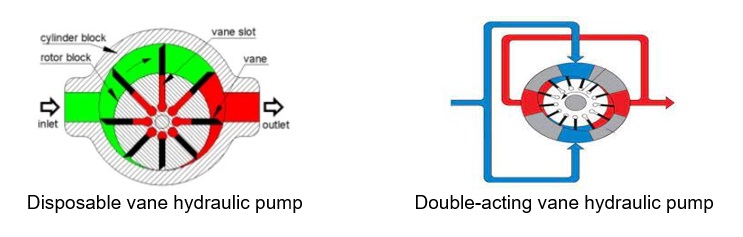

Lamellar hydraulic pumps are usually made of single action and double action. In single-acting pumps, the suction and pressure process is carried out once per revolution of the hydraulic machine shaft, and in double-acting hydraulic pumps - twice.

Vane hydraulic pumps can be unregulated and regulated. Only single-acting pumps can be regulated.

Compared to gear pumps, vane pumps create a more uniform supply, and compared to piston pumps - cheaper, simpler in design and less demanding to filter the working fluid.

Vane hydraulic pumps are used in hydraulic systems of metalworking machines, presses, oil pumping systems, municipal equipment for oil supply to the working bodies.

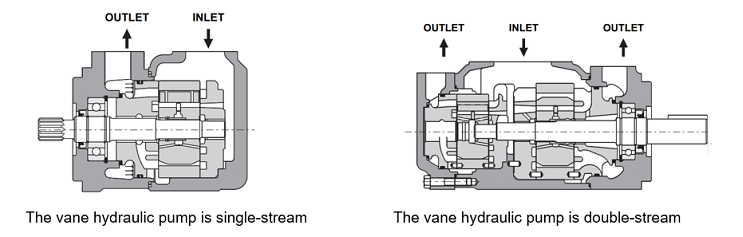

Vane pumps can be single-flow, two-flow, etc.

In single-flow hydraulic pumps there is one suction line and one discharge line, in two-flow in turn there is one suction and two discharge lines.

Unregulated hydraulic pumps:

In addition to the supply of vane hydraulic pumps of the specified manufacturer, our company can offer our customers the supply of original or a selection of analogues of the following vane pumps:

• Rexroth vane pumps / Rexroth vane hydraulic pumps
• Bosch vane pumps / Bosch vane hydraulic pumps
• Bosch Rexroth vane pumps / Bosch Rexroth vane hydraulic pumps
• Parker vane pumps / Parker vane hydraulic pumps
• Denison vane pumps / Denison vane hydraulic pumps
• Parker Denison vane pumps / Parker Denison vane hydraulic pumps
• Vickers vane pumps / Vickers vane hydraulic pumps
• Eaton vane pumps / Eaton vane hydraulic pumps
• Eaton Vickers vane pumps / Eaton Vickers vane hydraulic pumps
• Yuken vane pumps / Yuken vane hydraulic pumps
